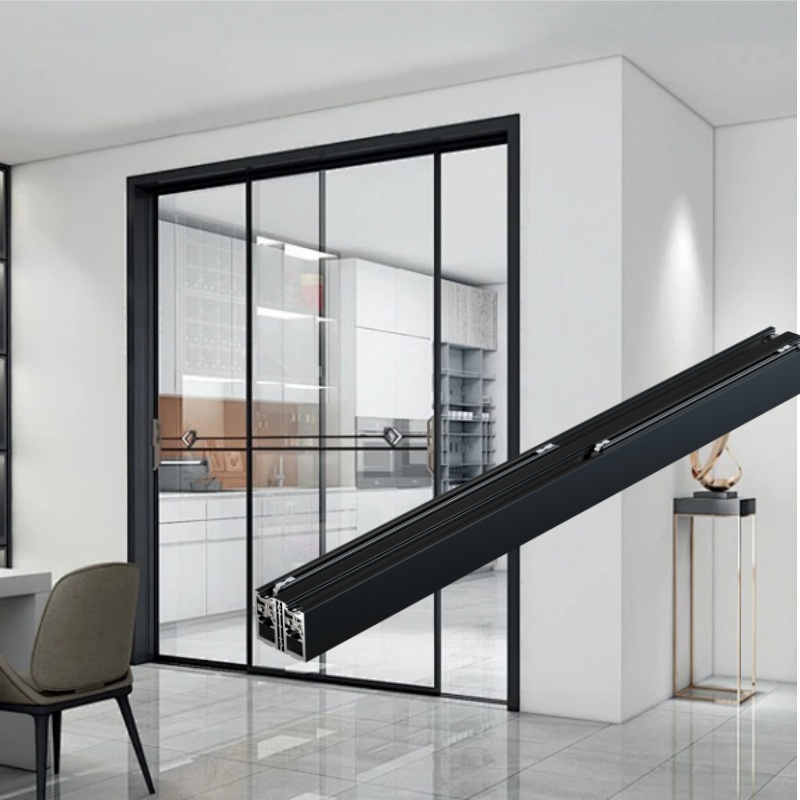

Ultra-narrow track electric door linear magnetic automatic doors

The Caelus Automatic Door is built on advanced magnetic levitation technology, enabling it to effortlessly glide open and closed with a fluid and frictionless motion. This state-of-the-art technology eliminates the need for traditional rollers, providing a quiet and maintenance-free experience. Upgrade to the future of automatic doors with Caelus Automatic doors Magnetic Levitation Zero Gravity technology.

Category: Automatic sliding door

What is Magnetic Levitation

Magnetic levitation (maglev) or magnetic suspension is a method by which an object is suspended with no support other than magnetic fields. Magnetic force is used to counteract the effects of the gravitational force and any
other forces

What is Linear Motor

A linear motor is an electric motor that has had its stator and rotor “unrolled”, thus, instead of producing a torque (rotation), it produces a linear force along its length. However, linear motors are not necessarily straight. Characteristically, a linear motor’s active section has ends, whereas more conventional motors are arranged as a continuous loop.

The new generation of intelligent door drive is more suitable for customization

Upgrade your patio to a maintenance-free experience with Hover Doors Magnetic Levitation Zero Gravity technology. Our advanced magnetic levitation system eliminates the need for traditional rollers, providing an effortless and maintenance-free operation,ensuring that your patio door system operates smoothly and quietly for years to come. Say goodbye to the hassle and cost of maintenance and enjoy the ultimate convenience and luxury of a no-maintenance patio door with Hover Doors. Backed by our lifetime warranty, you can trust in the durability and reliability of our advanced technology. Choose caelus Doors for the ultimate in patiodoor convenience, style, and longevity.

Products Description

Exquisite linear structure, Concealed setup

Vector Control Algorithm, Smooth and Silence

Telescope model supports 35/40/45 series profile door

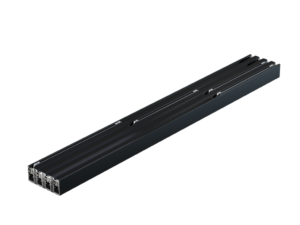

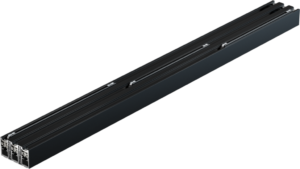

Multiple Track, Separated Drive.

With contactless Magnetic Linear Drive, our product provides safer and more durable experience.

Automatic Learning Program, Auto-adjustment, long-term stability.

Supports factory setup, one step installation.

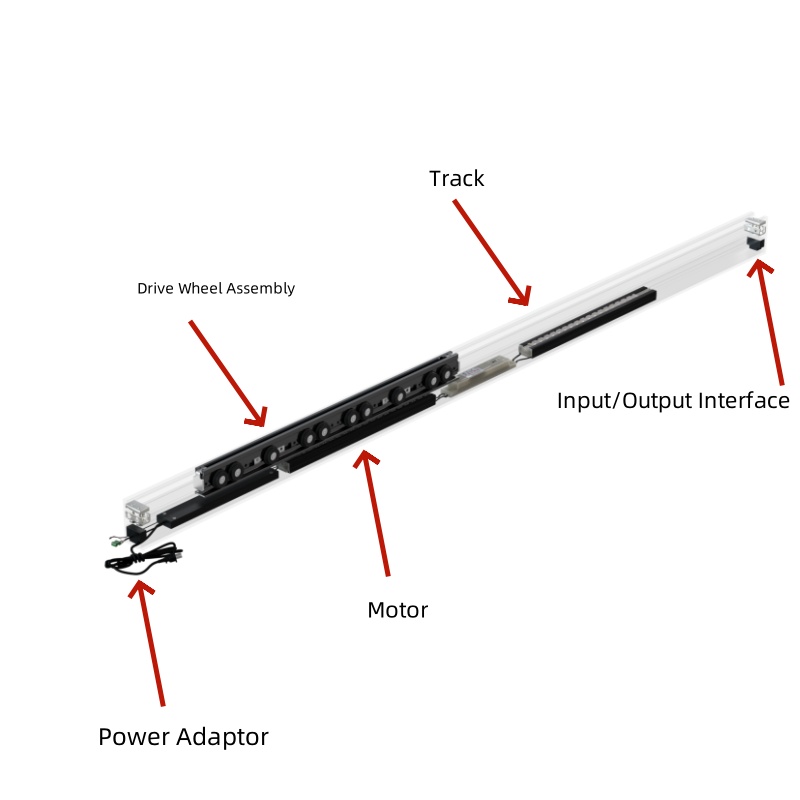

Products Details

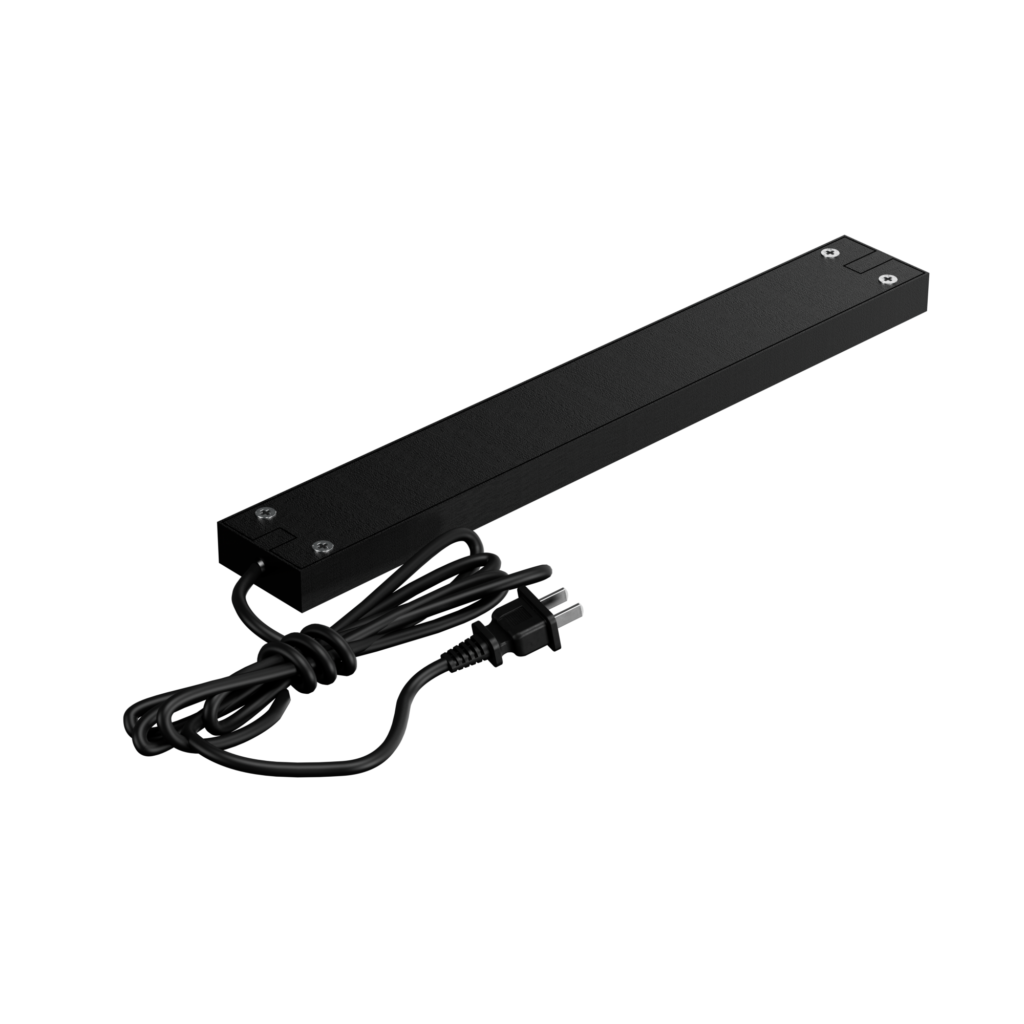

Power Adaptor

Performance Power Adaptor,wide range voltage input, 24vsafe voltage output, overcurrent,overheat and short circuit protected.

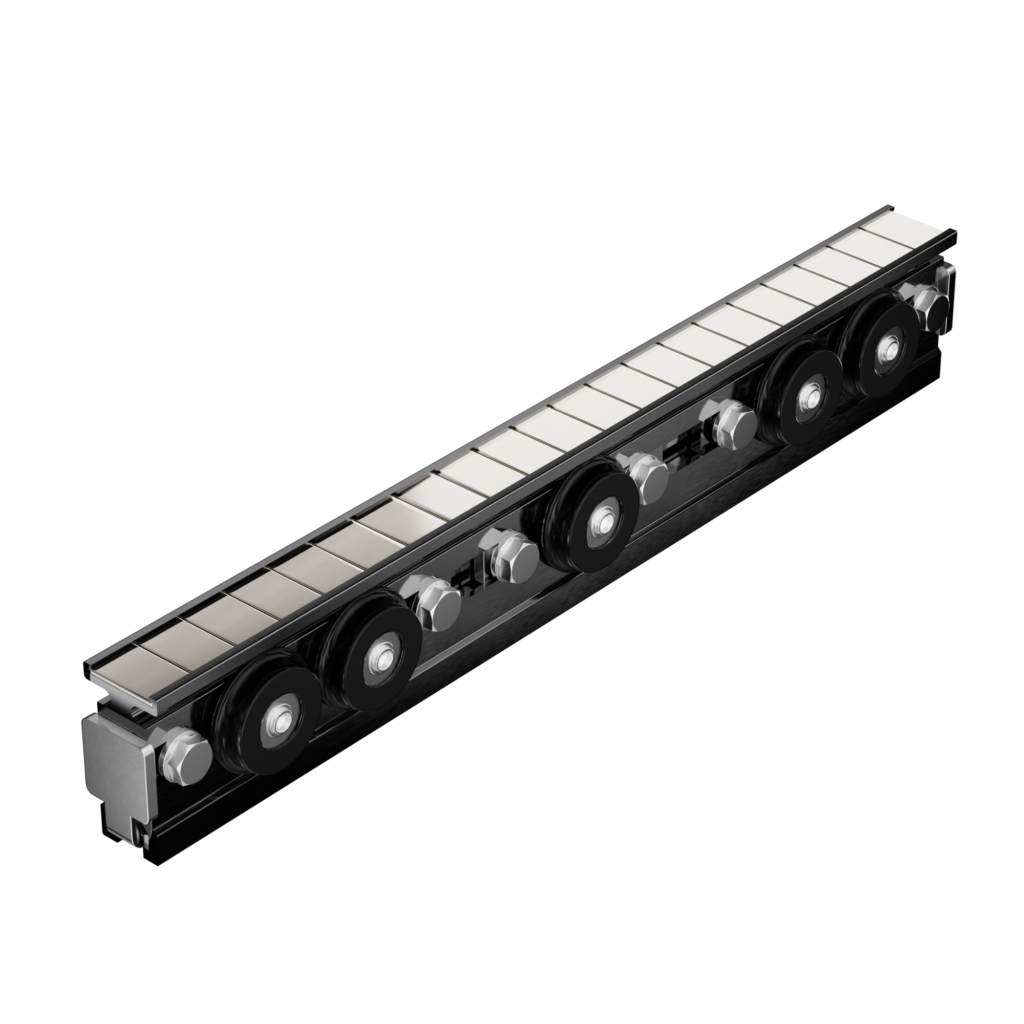

Drive Wheel Assembly

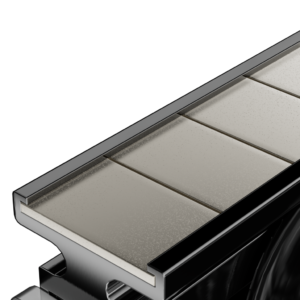

High-end aluminum, Performance magnet and Next- gen patented roller, Perfectly paired to lower shock to achieve extreme silence.

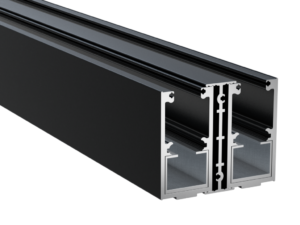

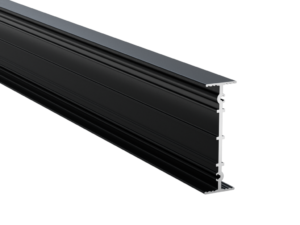

Track

High-end aluminum, 40mm extreme slim + 3 level adjustable design, supports wide range thickness, telescope model supports 35/40/45 series profile door.

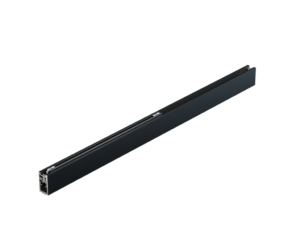

Linear Motor (Drive unit, Control unit and Blue tooth unit included)

Non-contact magnetic linear drive, longer service life; main controlunit adopts vector control algorithm, smooth operation,resistancerebound; standard intelligent Bluetooth module, support mobileAPP control; high appearance level aluminum shell packagingclassic appearance design.

Mute

Caelus Maglev automatic door：< 40dB(A)(comfortable and quiet environment for human body) Traditional automatic door：Reducer box buzzing noise, motor wear noise, etc.

Safety

★ Safety anti-pinch，Vector control algorithm, microcomputer control system for precise monitoring, quick response, and rebound whe
encountering obstacles. Anti-shear force in place.＜10N

Parameters

Colour：black/sliver

Installation：Hanging/Hiding/Side Hanging

Power:AC110-220v, 50/60Hz

Operation Weight		＜＝100KG
Speed		0.2-0.5m/s
rated power		60wset
Standby power		＜5W
Door opening speed		100-500mm/S (adjustable)
Closing speed		100-500mm/S (adjustable)
Manual opening and closing force		＜10n
Running noise		≤40Db
Door opening dwell time		0~30s
Anti-Pinch Speed		0mm’s (Safety assured, no harm)

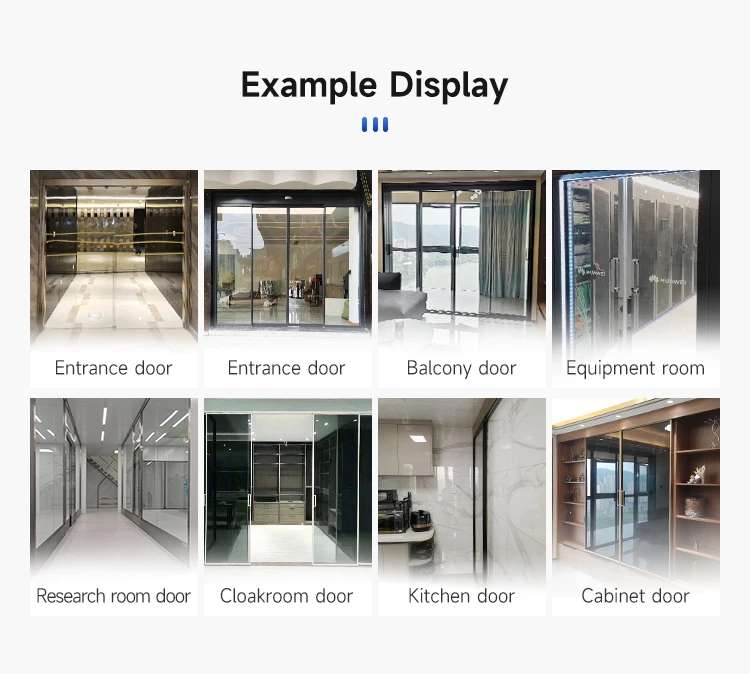

Multiple door forms

A simple yet secure system for areas such as offices, hospitals, elderly homes, banks, commercial locations, and much more.

Direct maintenance：Don’t need to remove the track and door panels, can directly replace the motor power supply.
Magnetic levitation drive：No belt design, more durable,quiet and smooth operation.

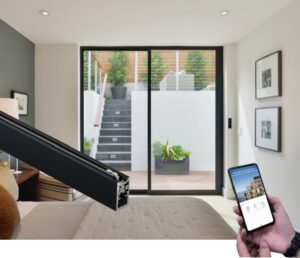

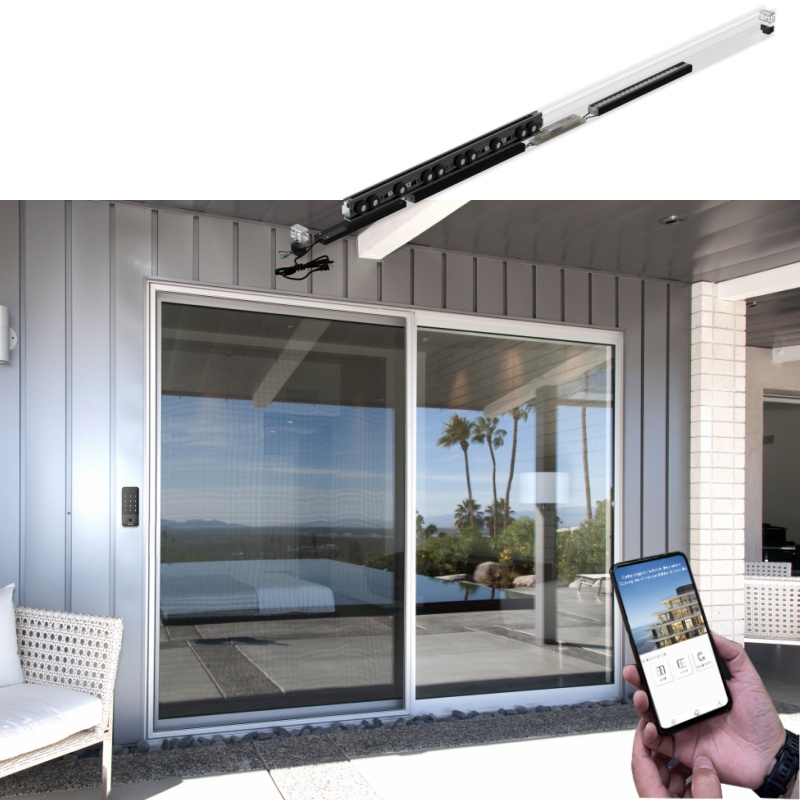

Modern intelligence：Phone App Bluetooth connection/remote control/sensor/smart door lock…to open the door.
Easy to install：Assemble the parts and debug the system in the factory before shipment.Ensure quality.
More secure：High sensitivity Avoid getting pinched when close the door.

	Caelus Maglev automatic door	Traditional automatic door
principle	Non-contact magnetic drive, between motor and moving rail There is a 1.5-2mm gap between.	traditional rotating motor, After deceleration through the reduction box, it is driven by the belt.
volume	Exquisite linear structure takes up little space.	The motor acceleration and reduction gearbox has a complex structure and occupies big space.
life	Non-contact magnetic drive, no wear, use Longer life	The gears of the reduction box are very easy to wear and the maintenance cost is high. The motor has a limited number of times and a short service life.
Install	① Whole rail installation is easier . ② Self-learning and adapting to the best state when power is turned on. Fool-proof .installation is easier	① The mechanical hardware structure is complex and the installation steps trouble ② The installation and debugging procedures are cumbersome and technically difficult
Energy saving	★Small mechanical friction★ low loss ★low power ★ high energy efficiency	★Mechanical friction is large ★ power and loss are high ★Low energy efficiency

	Caelus Maglev automatic door	Traditional automatic door
*Function*	★ Supports rich personalized settings such as operating speed, door opening and closing time, etc. ★Supports free switching between automatic, inching, fully open, fully closed and other modes	The functional system is limited and backward, and the function settings are relatively Less, inconvenient to operate
*Safety*	★Anti-pinch systemincluded ★High-performance power supply to prevent short circuit, overvoltage and overcurrent faults and eliminate hidden dangers	Old-fashioned square wave control is insensitive and kinky Force driven, anti-pinch function may cause loss of control and injury.
*Stablize*	★ Vector control system, smooth operation ★ Tens of thousands of aging tests, low failure rate, 1 million+ times of cycle operation without failure Adaptive and self-adjusting operating curve keeps the door in optimal operating condition.	① Old-fashioned square wave control has poor accuracy and is easy to Stuttering occurs ② Complex structure and many fault points ③Mechanical wear and long-term use are prone to transportation problems. line error, requiring frequent manual adjustment and maintenance
