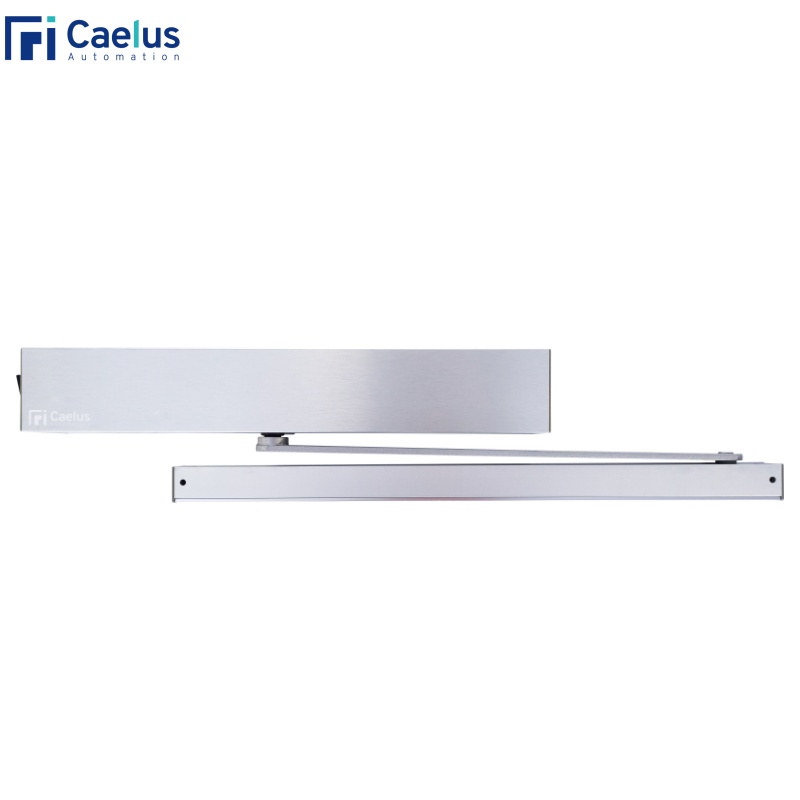

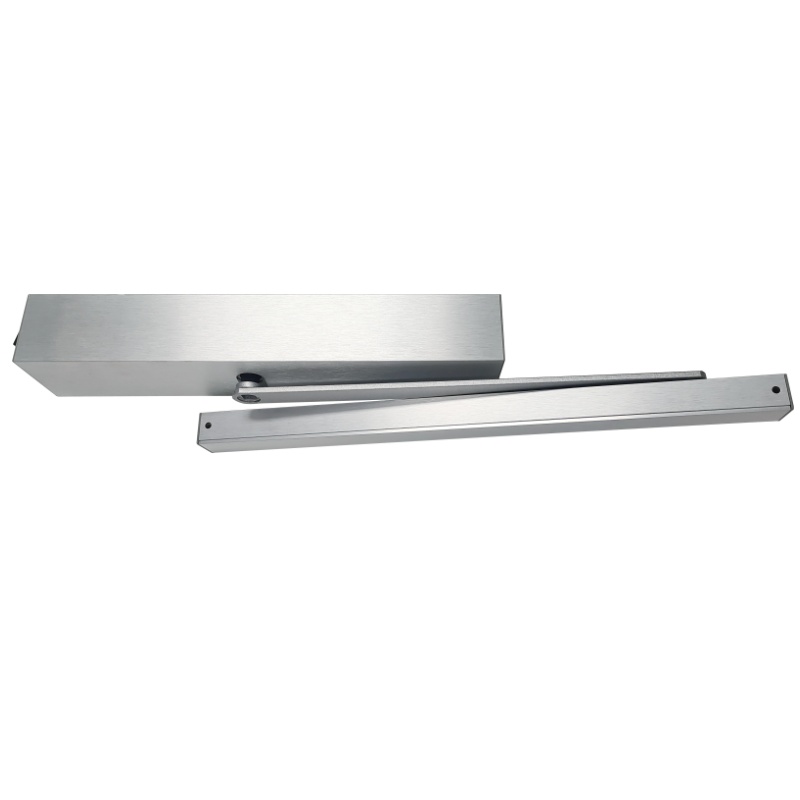

Low Energy Automatic Swing Door Operators

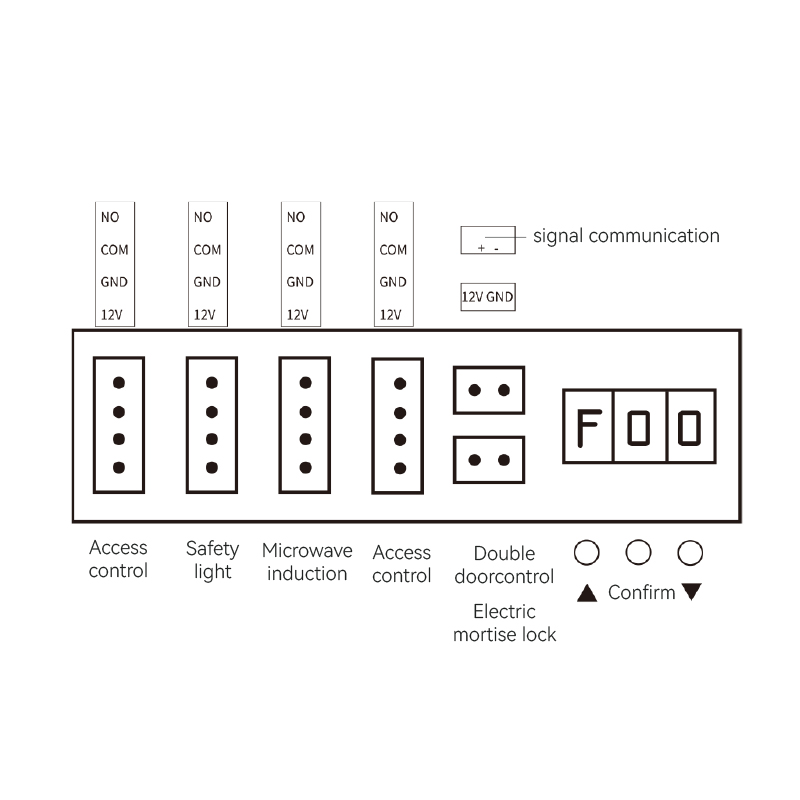

High torque direct drive motor, no reduction gearbox design ，Runs fast speed ，Motor wear is small and much Heavy protection，service life of more than 5 million times,it can work stable and with smooth operationEasy Installation and Debug,Technical Phone Support AvailableMulti-function interface- It can be connected with the electronic lock, the access control system and etc., and can be connected directly with sensor.

SKU: I68-150KG Category: Automatic swing door

General Details

Products Description

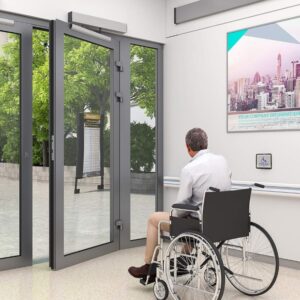

The I68-150KG is a low energy automatic swing door opener that is activated by wireless handicap buttons.This system operates in both automatic and manual modes, In manual mode, door opens with very little pressure and closes slowly providing easy operation for handicapped or pedestrians

With advanced wide voltage technique, it makes the I68-150KG highly adapt to voltage fluctuations between 110-220VAC +/-10%, it can be used in areas almost of the world whether it is a peak in urban power or insufficient power supply in remote areas.More energy saving and durable than ordinary single input voltage.

The I68-150KG is a kit with an automatic door opener for both in swinging and out swinging doors and two stainless handicap push to exit buttons for automatic doors. This system is designed to secure your door and have the capabilities of automatically and manually opening and closing it as well. A simple yet secure system for areas such as offices, hospitals, elderly homes, banks, commercial locations, and much more. They are characterized by small volume, low noise at running , easy installation,and stable performance, etc.

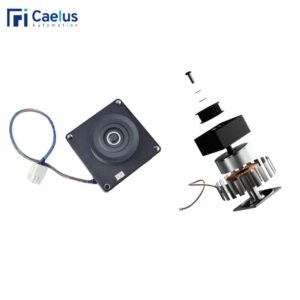

servo motor

High torque servo motor drive, longer service life; main controlunit adopts vector control algorithm,

smooth operation,resistancerebound;

standard intelligent Bluetooth module,

support mobile APP control;

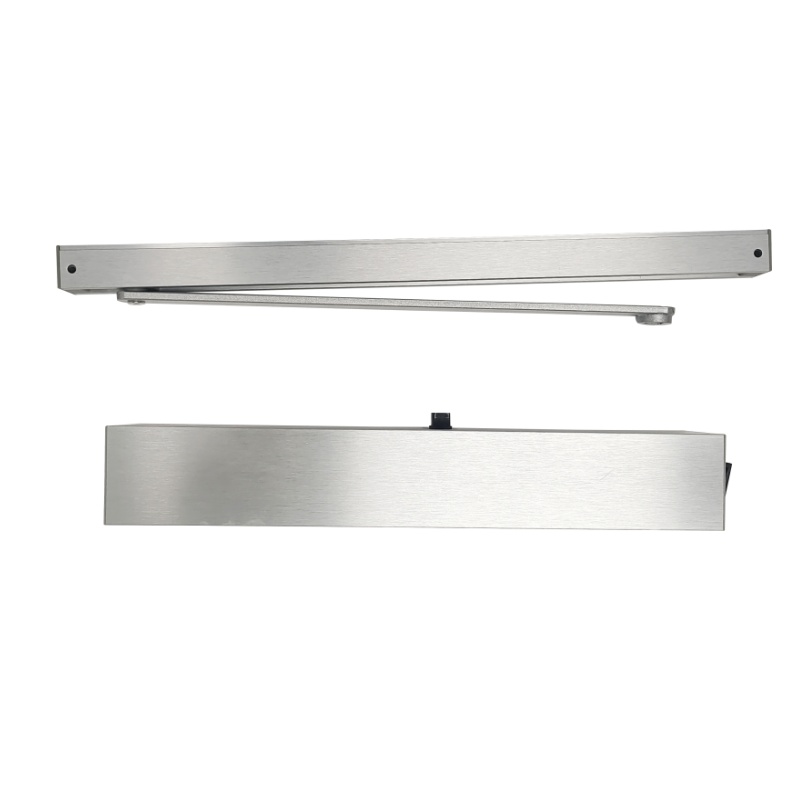

high appearance level aluminum shell packagingclassic appearance design.

Mute

Caelus sliding automatic door：Silent testlower noise,more serenity <40dB(A）

Traditional automatic door：Reducer box buzzing noise, motor wear noise, etc.

Safety

Safety anti-pinch，Vector control algorithm, microcomputer control system for precise monitoring, quick response, and rebound whe
encountering obstacles. Anti-shear force in place＜10N

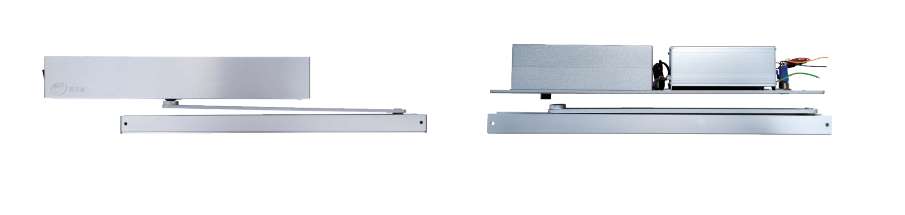

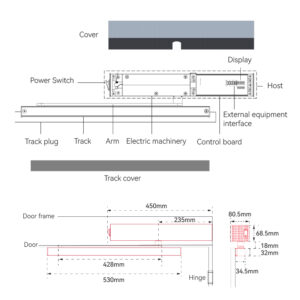

Installation:can be mounted on the surface or hidden in the surface

function

1.Self-learning and adaptive mode, self-adjusting the best operating state of the door.

2.Support customized opening/closing speed, adjustable range 100 ~ 500 mm/s.

3.Support customizing the door opening dwell time, adjustable range 0 ~ 30 s.

4.Suppor

t free switching of fully open, fully closed, automatic, inching and other modes.

5.Support push and go ，Automatically recognize and open the door 6.one-click factory reset.

Technical Parameter

Operation Weight：40-150kg
Speed：0.2-0.5m/s
Voltage：AC110-200V, 50-60Hz
Standby power：＜5W
Door Thickness：40-100mm
Door Width：700-1600mm
Manual opening and closing force：＜25n
Running noise：≤40Db
Door opening dwell time：0~30s
Life Exectance：5 Million Time
Power Consumption：<=120W
Ambient Temperature：-30°C-50 °C
Voltage：AC110-200V, 50-60Hz

Video

How to operate?

Comparison table

	Caelus servo motor	Traditional automatic door
life	No reduction gearbox design, small motor wear and more Heavy protection, longer service life	The gears of the reduction box are very easy to wear and the maintenance cost is high. The motor has a limited number of times and a short service life.
Install	① Quick installation components, easy to install ② Self-learning and adapting to the best state when powered on status, fool-proof installation is easier	① The mechanical hardware structure is complex and the installation steps trouble ② The installation and debugging procedures are cumbersome and technically difficult
Energy saving	★Small mechanical friction ★ low loss ★low power ★ high energy efficiency	★Mechanical friction is large ★ power and loss are high ★Low energy efficiency

	Caelus servo motor	Traditional automatic door
Safety	★Anti-pinch systemincluded ★High-performance power supply to prevent short circuit, overvoltage and overcurrent faults and eliminate hidden dangers	Old-fashioned square wave control is insensitive and kinky Force driven, anti-pinch function may cause loss of control and injury.
Stablize	★ Vector control system, smooth operation ★ Tens of thousands of aging tests, low failure rate, 3 million+ of cycle operation without failure Adaptive and self-adjusting operating curve keeps the door in optimal operating condition.	① Old-fashioned square wave control has poor accuracy and is easy to Stuttering occurs ② Complex structure and many fault points ③Mechanical wear and long-term use are prone to transportation problems. line error, requiring frequent manual adjustment and maintenance
Function	★ Supports rich personalized settings such as operating speed, door opening and closing time, etc. ★Supports free switching between automatic, inching, fully open, fully closed and other modes	The functional system is limited and backward, and the function settings are relatively Less, inconvenient to operate

model		I68-150KG
brand		Caelus Automation
Installation		can be mounted on the surface or hidden in the surface
Application scenarios		Home/Commercial/Industrial
design style		Modern
Operation Weight		40-250kg
Speed		0.2-0.5m/s
Voltage		AC110-200V, 50-60Hz
Standby power		＜5W
Door Thickness		40-100mm
Door Width		700-1600mm
Manual opening and closing force		＜25n
Running noise		≤40Db
Door opening dwell time		0~30s
Life Exectance		5 Million Time
