High torque servo motor drive, longer service life; main controlunit adopts vector control algorithm, smooth operation,resistancerebound; standard intelligent Bluetooth module, support mobileAPP control; high appearance level aluminum shell packagingclassic appearance design.
Max 150kg door weight
（Single open 150kg×1，Double open 75kg×2）
Max 300kg door weight
（Single open 300kg×1，Double open 150kg×2）
Mute
Caelus sliding automatic door：Silent testlower noise,more serenity <40dB(A）
Traditional automatic door：Reducer box buzzing noise, motor wear noise, etc.
Safety
★ Safety anti-pinch，Vector control algorithm, microcomputer control system for precise monitoring, quick response, and rebound whe
encountering obstacles. Anti-shear force in place＜10N
encountering obstacles. Anti-shear force in place＜10N
Standard function | Extended functions |
Infrared sensor When the human body is close to the door, it will open automatically, and the sensing distance range can be adjusted | Mobile phone control Accessible to remote modules, supporting diversified personality settings |
Push then open Manually push the door, and the door motor immediately recognizes the opening signal and starts automatically | Switch control Support matching of various press switches, touch switches, foot switches, etc |
Manual push-pull In case of power failure, the door can be opened/closed manually in an emergency | Remote control It can realize functions such as unlocking, locking, opening, closing, and arbitrary start and stop |
Access control system Support password/card/fingerprint/face recognition and other devices to authorize door opening and clock in | |
Voice control Support smart voice box such as Xiaoai, Xiaodu, Huawei and Tmall Genie |

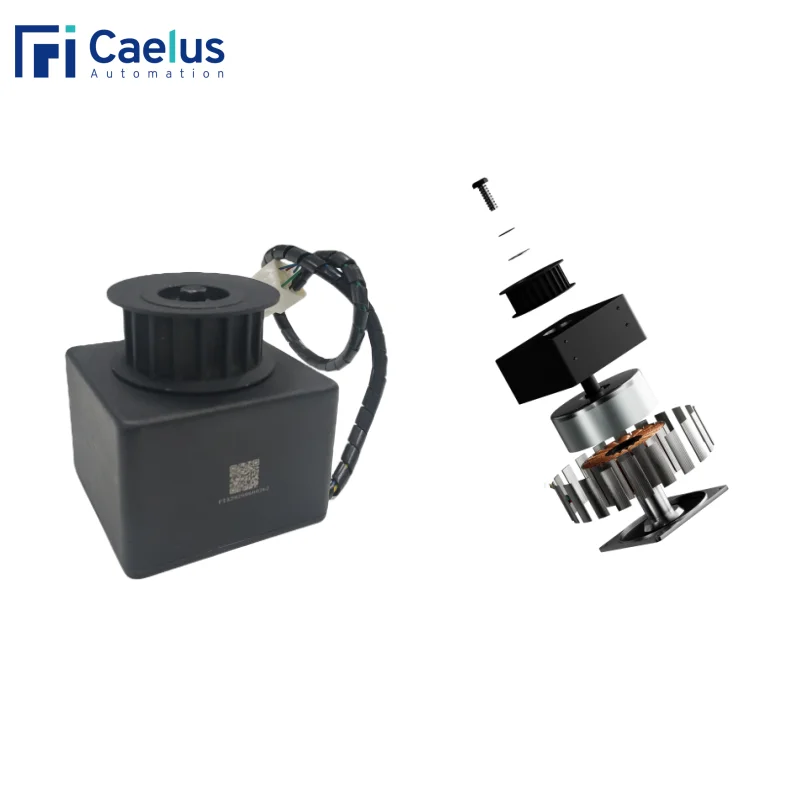

Caelus servo motor | Traditional automatic door | |
life | No reduction gearbox design, small motor wear and more Heavy protection, longer service life | The gears of the reduction box are very easy to wear and the maintenance cost is high. The motor has a limited number of times and a short service life. |
Install | ① Quick installation components, easy to install ② Self-learning and adapting to the best state when powered on status, fool-proof installation is easier | ① The mechanical hardware structure is complex and the installation steps trouble ② The installation and debugging procedures are cumbersome and technically difficult |
Energy saving | ★Small mechanical friction ★ low loss ★low power ★ high energy efficiency | ★Mechanical friction is large ★ power and loss are high ★Low energy efficiency |
Caelus servo motor | Traditional automatic door | |
Safety | ★Anti-pinch systemincluded ★High-performance power supply to prevent short circuit, overvoltage and overcurrent faults and eliminate hidden dangers | Old-fashioned square wave control is insensitive and kinky Force driven, anti-pinch function may cause loss of control and injury. |
Stablize | ★ Vector control system, smooth operation ★ Tens of thousands of aging tests, low failure rate, 3 million+ of cycle operation without failure Adaptive and self-adjusting operating curve keeps the door in optimal operating condition. | ① Old-fashioned square wave control has poor accuracy and is easy to Stuttering occurs ② Complex structure and many fault points ③Mechanical wear and long-term use are prone to transportation problems. line error, requiring frequent manual adjustment and maintenance |
Function | ★ Supports rich personalized settings such as operating speed, door opening and closing time, etc. ★Supports free switching between automatic, inching, fully open, fully closed and other modes | The functional system is limited and backward, and the function settings are relatively Less, inconvenient to operate |
